A cycling power meter measures the work you produce at the pedals, crank or drivetrain and reports it in watts. Unlike speed, power is not directly changed by wind, gradient or road surface. That makes it one of the most useful tools for pacing intervals, comparing training over time and controlling effort during a triathlon.
Pedal power meters are the easiest to move between compatible bikes. Left-crank meters are usually the lowest-cost entry point. Spider-based systems provide stable total-power measurement but require more drivetrain compatibility. Choose the system that fits your crank, bottom bracket, cleats, bike changes and service preferences before comparing small differences in claimed accuracy.
What does a cycling power meter measure?
Power is the rate at which work is performed. A bicycle power meter uses strain gauges and motion data to estimate torque and rotational speed, then calculates output in watts. The exact measurement point varies by design.
A power meter does not measure fitness directly. It measures what you produce on the bike. Fitness is inferred by connecting power to duration, heart rate, perceived effort, repeatability and performance over time.
Power = torque × angular velocity
In practical terms, more force at the same cadence or the same force at a higher cadence produces more watts.
New users should first understand Functional Threshold Power and how watt targets are organised in Cycling Power Zones.
Types of cycling power meter
| Type | Main advantage | Main limitation | Best for |
|---|---|---|---|
| Pedal | Easy transfer between compatible bikes | Locks you into a cleat format and requires correct installation | Riders using several bikes |
| Left crank arm | Affordable and light | Estimates total power by doubling one leg | Budget-focused first power meter |
| Dual crank | Measures both sides separately or more completely | More expensive and crank-specific | Riders wanting left-right information |
| Spider | Stable total-power measurement at the crankset | Chainring, axle and frame compatibility can be complex | Dedicated performance bikes |
| Crank spindle or axle | Protected location and clean appearance | Usually tied to a specific crank ecosystem | Compatible bikes staying in one system |
| Rear hub | Historically robust and simple | Limited modern availability and wheel-specific | Existing compatible wheel owners |

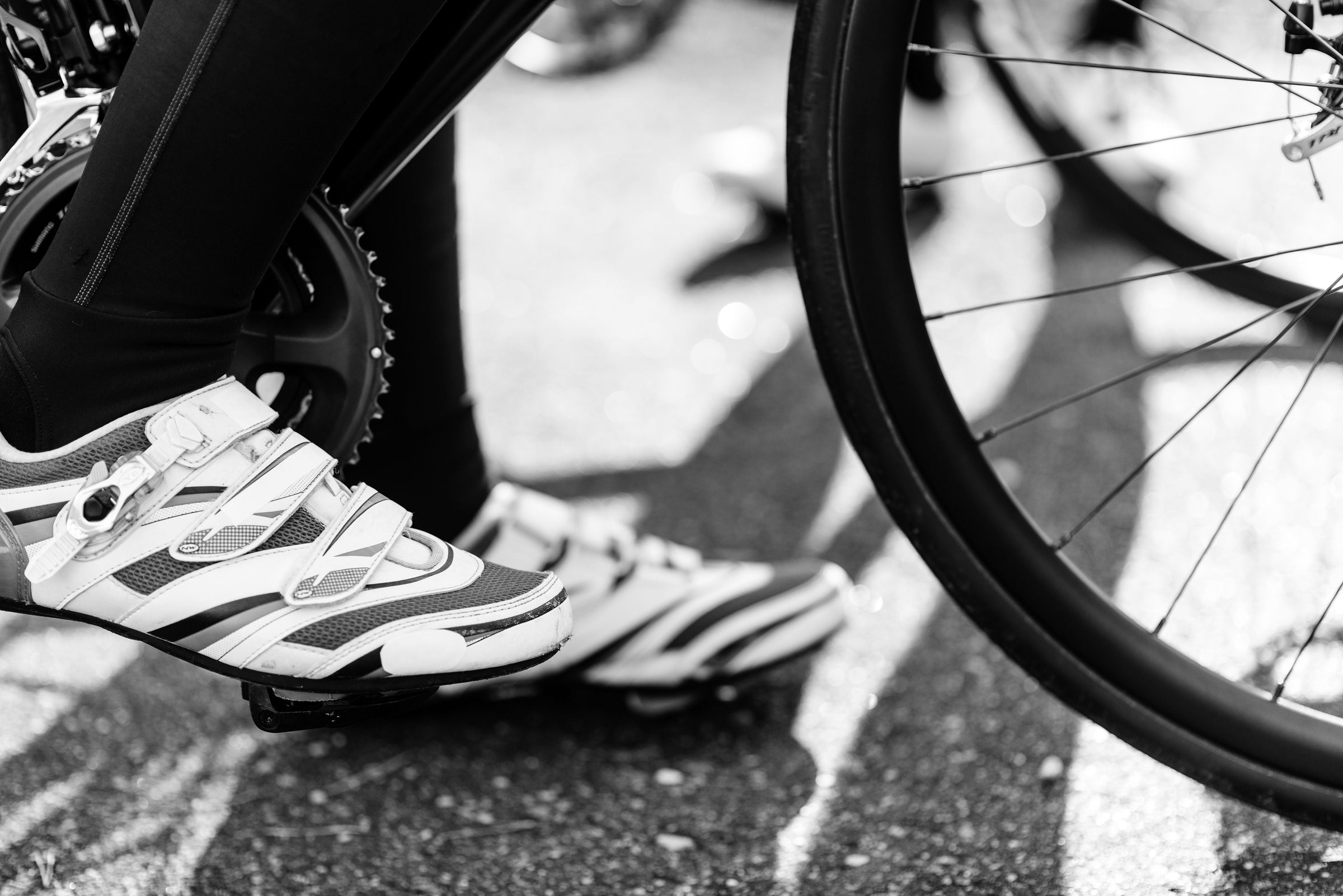

Pedal power meters
Pedal systems place the electronics and strain gauges at or inside the pedal spindle. Their main attraction is portability. A rider can move the meter from a road bike to a triathlon bike without replacing a crankset, assuming both bikes accept the same pedal and the rider uses the required cleat.
Installation still matters. Pedals must be threaded correctly, tightened according to the manufacturer's instructions and paired to the head unit. Some systems require a settling ride or several hard efforts after installation before readings stabilise.
Why choose pedals?
- Relatively easy bike-to-bike transfer
- Available in single- and dual-sided versions
- No crankset replacement
- Useful travel option for rental bikes
- Often reports cadence automatically
What to check first
- Cleat-system compatibility
- Pedal-stack height and fit changes
- Risk of impact damage
- Correct installation torque
- Higher price than many left-crank meters
Crank-arm power meters
A left-only crank meter measures the output from the left leg and doubles it to estimate total power. This keeps cost and weight low. It can be highly useful for consistent training when the rider's left-right contribution remains reasonably stable.
The limitation is mathematical rather than simply electronic. A rider producing 48 percent on the measured side and 52 percent on the unmeasured side will have total power estimated from the smaller contribution. The error can also change with fatigue, injury, cadence and intensity.
A left-only system can still guide intervals and track progress effectively. Use it consistently and avoid comparing its absolute numbers directly with a different measurement system without testing the difference.
Frame clearance is a common compatibility issue. The sensor pod attached to the inner crank arm must clear the chainstay throughout the rotation. Crank length, spindle type and crank model must also match.
Spider-based power meters
A spider meter measures torque near the centre of the crankset, normally capturing combined power before it reaches the chainrings. This avoids doubling one leg and keeps the sensor protected from direct pedal strikes.
The trade-off is drivetrain complexity. Bolt pattern, direct-mount interface, chainring size, spindle, frame clearance and electronic groupset compatibility can all matter. A spider can be excellent on a dedicated race bike, but it is less convenient when you regularly change between unrelated crank standards.
A theoretically excellent meter is the wrong purchase when it does not fit your crank, cleats or frame. Confirm every mechanical interface using the manufacturer's compatibility chart before ordering.
Single-sided versus dual-sided power
| System | How total power is produced | Best use | Caution |
|---|---|---|---|
| Single sided | One side measured and doubled | Affordable, consistent training | Changing asymmetry changes the estimate |
| Dual sided | Both sides measured independently | Bike fitting, detailed analysis and fewer assumptions | Higher price and more batteries or electronics |
| Combined total | Total torque measured at spider or drivetrain | Reliable overall pacing | May not provide true independent left-right data |
Left-right balance is interesting but should not become an obsession. Small asymmetries are common, and the displayed metric depends on how the device measures or estimates each side. A power meter is not a medical diagnostic tool. Sudden or painful changes should be assessed through bike fit, training history and appropriate clinical advice.
Accuracy, precision and consistency
Manufacturers often publish an accuracy range, but laboratory-style percentages do not describe every outdoor condition. Temperature change, installation, battery state, firmware and calibration can influence readings. More important for most athletes is repeatability: does the same device report similar output under similar conditions?
Closeness to the true value
Useful when comparing systems, but difficult to verify without a trusted reference and controlled test.
Stability of repeated readings
A meter that behaves consistently is easier to use for zones and progression.
How quickly the number changes
Very fast display can look noisy; longer averaging is easier for pacing.
Use three-second power for most steady intervals and race pacing rather than reacting to every one-second fluctuation. Lap average power is especially useful for longer repetitions and triathlon pacing.
Calibration, zero offset and temperature
“Calibration” is often used broadly, but many routine head-unit commands perform a zero offset rather than changing the factory calibration slope. Follow the terminology and procedure for your specific device.
-
Install correctly
Use the specified hardware, washers, spacers and torque values.
-
Wake the meter
Rotate the crank or pedals so the sensor connects to the head unit.
-
Allow temperature adjustment
When practical, let the bike reach outdoor temperature before the zero-offset procedure.
-
Remove load
Position the bike and crank exactly as the manufacturer instructs, with no pressure on the pedals.
-
Record unusual values
A sudden change in the returned offset can reveal installation, battery or hardware problems.
Some meters have automatic zero or active temperature compensation. That reduces maintenance but does not remove the need for correct installation and occasional checks.
ANT+ and Bluetooth connectivity
Most modern power meters transmit through ANT+, Bluetooth or both. ANT+ allows the same sensor to broadcast to compatible displays, while Bluetooth behaviour depends on how many simultaneous connections the product supports. Confirm compatibility with your bike computer, watch, indoor application and phone.
The ANT+ Bicycle Power device profile supports power transmission and optional information such as cadence, torque effectiveness, pedal smoothness and calibration commands. A device may support only part of that optional data.
When using both a watch and bike computer, pair each directly to the power meter where supported. Rebroadcasting can introduce limitations and unnecessary complexity.
Power meter compatibility checklist
- Crank brand, model and length
- Bottom-bracket and spindle standard
- Chainring interface and gearing
- Frame and chainstay clearance
- Pedal thread and required washers
- Cleat system and shoe setup
- Electronic shifting or chainline requirements
- Bike computer and watch protocols
- Battery type and charging access
- Manufacturer support in your region
Battery and maintenance
Power meters use rechargeable batteries, replaceable coin cells or proprietary battery systems. Rechargeable designs reduce disposable cells but require a charging routine. Replaceable batteries are convenient during travel but depend on correct seals and fresh cells.
Inspect battery doors and charging contacts, update firmware deliberately, and avoid changing batteries immediately before an important race unless the system has been tested afterward. Pedal bearings and crank hardware remain mechanical wear items even when the electronics function correctly.
Choosing a power meter for triathlon
Triathletes benefit from a meter that can remain on the race bike and deliver reliable lap power for long periods. Portability matters when training occurs on both a road bike and a triathlon bike. A pedal system may therefore offer better value than purchasing separate crank meters, while a dedicated spider can be ideal when the race bike is the main training platform.
| Your situation | Strong starting option | Why |
|---|---|---|
| One bike, limited budget | Compatible left-crank meter | Low cost and simple daily use |
| Road and triathlon bikes | Pedal meter | Can be moved between bikes |
| Dedicated race bike | Spider or total-power crank system | Clean installation and combined measurement |
| Detailed left-right interest | True dual-sided pedals or crank system | Measures both sides rather than doubling one |
| Frequent travel | Pedal meter with travel tools | Useful on compatible rental bikes |
For race pacing, display three-second power, lap average power, cadence, heart rate, elapsed time and distance. Test the layout on the bike computer recommended in our Best Bike Computers 2026 guide.
How to use a new power meter
-
Ride normally for one to two weeks
Learn how power responds to terrain, cadence, standing and fatigue before setting aggressive targets.
-
Complete an appropriate FTP assessment
Use a repeatable protocol rather than accepting a random peak estimate. Compare the options in our FTP testing guide.
-
Set zones from the same meter
Do not transfer zones blindly from a smart trainer or another bicycle.
-
Track lap averages
Record average power, heart rate, cadence and perceived effort for key intervals.
-
Retest under similar conditions
Progress is easier to interpret when the bike, meter and protocol remain consistent.
Common power-meter mistakes
Comparing different devices as identical
Pedal, crank and trainer measurements can differ because they measure at different points and use different algorithms.
Reacting to one-second power
Short fluctuations encourage erratic pacing. Use a suitable rolling average and lap data.
Ignoring installation torque
Incorrect assembly can affect readings, safety and component life.
Changing FTP after every good ride
Training zones should reflect repeatable performance, not one short peak.
Obsessing over left-right balance
Small asymmetries may be normal and the metric can be estimated rather than directly measured.
Buying before checking compatibility
Mechanical standards are the first filter, not a footnote after purchase.
Frequently asked questions
Is a cycling power meter worth it?
It is especially valuable for structured intervals, objective progress tracking and triathlon pacing. Recreational riders who do not use the data may gain more from coaching, bike fit or consistent training first.
Are pedal power meters accurate?
Quality pedal meters can provide highly useful and repeatable data when installed correctly. Actual performance depends on the model, temperature, firmware, battery and installation.
Is single-sided power enough?
For many athletes, yes. It provides consistent training guidance at lower cost. It becomes less reliable as a total-power estimate when left-right contribution changes substantially.
Can I use a power meter with any bike computer?
Only when the head unit supports the meter's ANT+ or Bluetooth power protocol. Check both devices and the number of simultaneous Bluetooth connections.
Why does my smart trainer show different watts?
The devices measure at different locations, and drivetrain losses, calibration and temperature can create a gap. Use one chosen source consistently for workouts and testing.
Do I need cadence as well?
Most power meters calculate or transmit cadence. Confirm the specification, because the method and reliability can vary by design.
Final verdict
The best power meter is the system that fits your bike, connects reliably, survives your normal use and produces repeatable data. Pedals offer portability, left-crank meters offer affordable access, and spider systems provide a strong dedicated-bike solution.
Do not pay for dual-sided metrics unless they answer a real training or fitting question. For most athletes, consistent total power, correct zones and disciplined execution create more value than another advanced data field.
The description of bicycle-power communication is informed by the ANT+ Bicycle Power device profile overview. Installation, calibration and compatibility procedures vary by manufacturer and model; always follow the current product manual.
